M2Tech has upgraded its Young DAC, and the name Young DSD should be sufficiently revealing.
Last week we had a news about M2Tech`s new headphone amplifier Marley , which is an advanced and flexible device that can even function as an integrated amplifier if you have very easy-powered speakers.
Marco told us that they also have a recently upgraded DAC, named Young DSD. This has been prelaunched for a while, and had its first public preview right before Christmas. But now it is ready for sale, and the contents of the upgrade disclosed by name. For Young DSD follow of course last year's trend, by offering playback / conversion of DSD files, both in normal and double rate. That means DSD64 and DSD128.
In addition, it is new that it is balanced, and that it has full functionality preamp. This means that it has digital inputs, but a digitally controlled analog volume control.

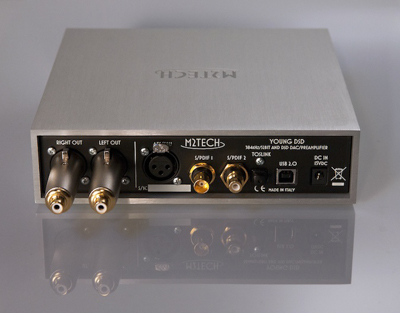

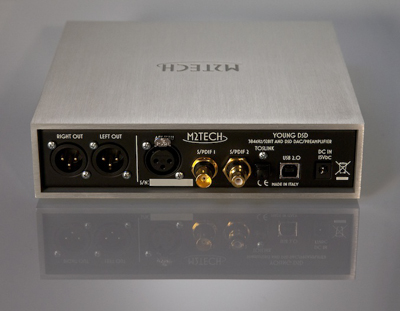

Young DSD also has coax and balanced digital inputs, and one USB input. There are also single-ended (using the adapter) and balanced output.
Manufacturer specifications are given below:
Inputs:
AES/EBU on female XLR socket
S/PDIF on female RCA socket
S/PDIF on female BNC socket
Optical on Toslink™ connector
Async USB compatible with USB Audio Device
Class 2/1 “B” type female USB connector
Outputs:
Balanced analog on gold-plated male XLR connectors
Power input:
5.5/2.1mm jack with positive on tip
Output voltage:
2.7Vrms @0dBFS (single-ended with adaptors, “normal”)
5.4Vrms @0dBFS (single-ended with adaptors, “high”)
5.4Vrms @0dBFS (balanced, “normal”)
10.8Vrms @0dBFS (balanced, “high”)
Output impedance:
100Ohm (single ended with adaptors)
200Ohm (bilanciato)
Signal-to-noise ratio:
118dB (0dBFS, balanced, “A”-weighted)
114dB (0dBFS, single-ended, “A”-weighted)
THD+N:
0.0008% (-3dBFS, balanced, 1kHz)
0.003% (-3dBFS, single-ended, 1kHz)
Sampling frequency PCM:
44.1, 48, 88.2, 96, 176.4*, 192*, 352.8**, 384**kHz
DSD formats 64x, 128x**
PCM resolution:
16 to 32 bit (USB)
16 to 24 bit (other inputs)
Volume setting:
0dB to -96dB in 0.5dB steps
Muting:
-20dB
Balance setting:
+/-6dB in 1dB steps
Phase:
0°, 180°
Automatic switch-off:
10 to 240 minutes in 10 minutes steps, plus disabled
Supply:
15VDC 300mA
Power consumption:
4.5VA
Size:
200x50x200mm (w x h x d)
Weight:
1.7kg (device only)
2.5kg (packed)
* Not on Toslink™
** USB Only
Distributor in Norway Mono AS .
Read more about Young DSD with M2Tech
