Elac DEBUT – ny høyttalerserie i budsjettsegmentet

Skrevet av

Elac lanserer høyttalerserien DEBUT. Det er en lavprisserie beregnet spesielt for AV-oppsett, der du også finner et par Atmos Ready høyttalere matchet for å sette på toppen av fronthøyttalerne.

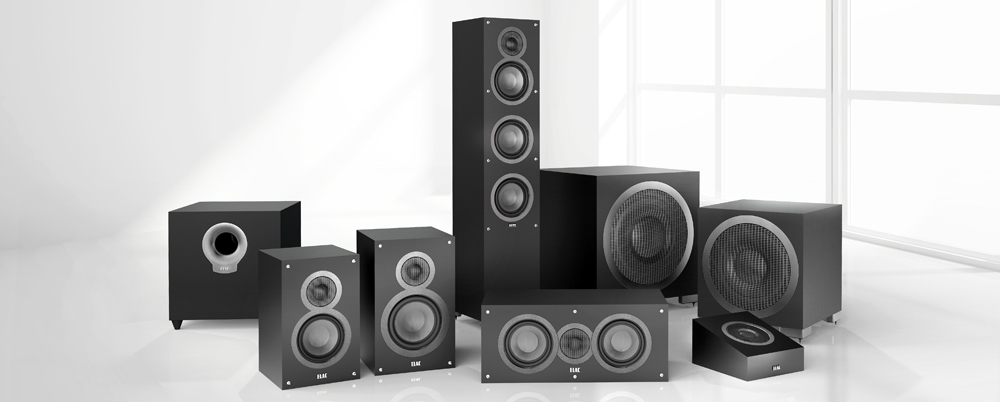

Elac har fått spesielt mye kreditt for sine kompakte stativhøyttalere i mellomklassen, der en bånddiskant er et sentralt element. Denne gangen er det rimeligere konstruksjoner som lanseres i DEBUT-serien. Serien inneholder to ulike modeller med stativhyttalere, et sett gulvhøyttalere og en senterhøyttaler. I tillegg har serien tre ulike subwoofere, og et sett med Atmos Ready høyttalere. Sistnevnte har en bunnflate som korresponderer med målene på den største stativhøyttaleren.

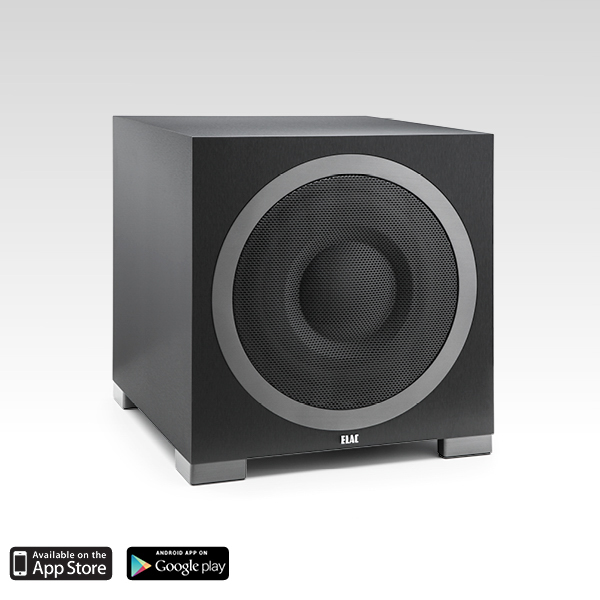

Det er to 10-tommers subwoofere og en 12 tommer. De to største modellene S10EQ og S12EQ kan styres av en app for iOS og Android.

Serien er den første som blir designet av Elac America sin Andrew Jones, på Elac sitt nye Southern California Design Center. Det er lagt vekt på god ytelse i konstruksjoner med lav kostnad.





Basselementene i alle modellene er laget av aramid-fiber, mens diskantelementene her består av softdomes, og ikke bånddiskanter som i de dyrere modellene. Kabinettene er produsert i mdf, kledd med vinyl.





Produsentens spesifikasjoner for modellene i serien Elac DEBUT:

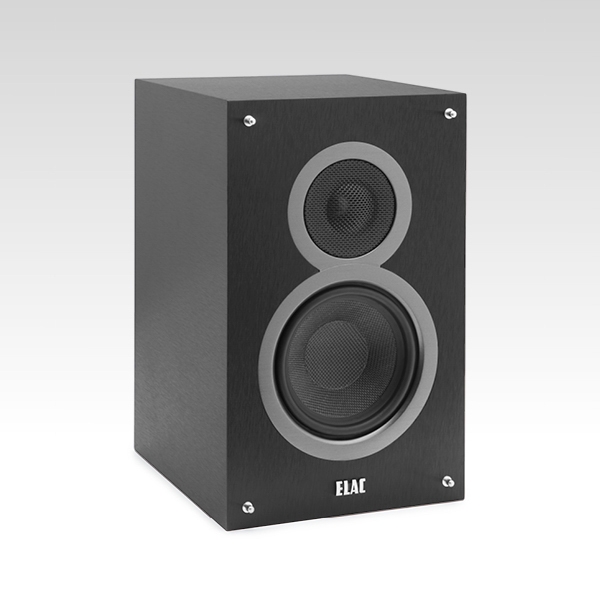

Elac DEBUT B5.

  • SPEAKER TYPE 2-way, bass reflex
  • FREQUENCY RESPONSE 46 to 20,000 Hz
  • NOMINAL IMPEDANCE 6 Ω
  • SENSITIVITY 85 dB at 2.83 v/1m
  • CROSSOVER FREQUENCY 3,000 Hz
  • MAXIMUM POWER INPUT 120 Watts
  • TWEETER 1-inch cloth dome
  • WOOFER 5.25-inch woven aramid-fiber
  • cone with oversized magnet
  • and vented pole piece
  • CABINET CARB2 rated MDF
  • CABINET FINISH Black brushed vinyl
  • PORT Dual flared
  • BINDING POSTS 5-way metal
  • WIDTH 7.87 in / 200 mm
  • HEIGHT 12.75 in / 324 mm
  • DEPTH 8.75 in / 222 mm
  • WEIGHT TBD

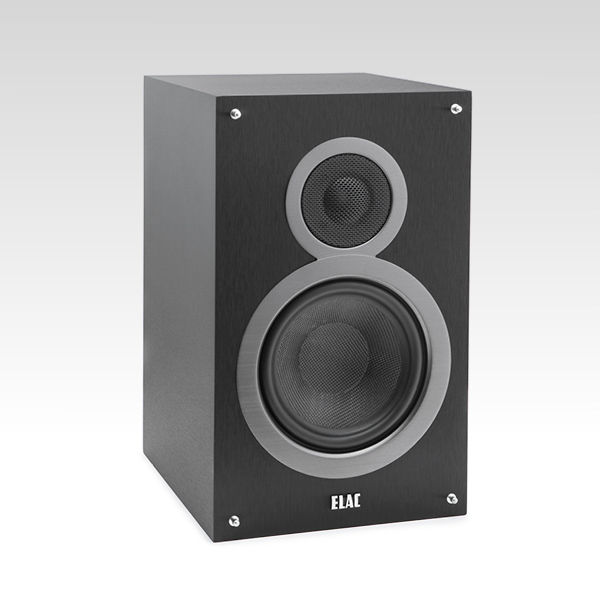

Elac DEBUT B6

  • SPEAKER TYPE 2-way, bass reflex
  • FREQUENCY RESPONSE 44 to 20,000 Hz
  • NOMINAL IMPEDANCE 6 Ω
  • SENSITIVITY 87 dB at 2.83 v/1m
  • CROSSOVER FREQUENCY 3,000 Hz
  • MAXIMUM POWER INPUT 120 Watts
  • TWEETER 1-inch cloth dome
  • WOOFER 6.5-inch woven aramid-fiber
  • cone with oversized magnet
  • and vented pole piece
  • CABINET CARB2 rated MDF
  • CABINET FINISH Black brushed vinyl
  • PORT Dual flared
  • BINDING POSTS 5-way metal
  • WIDTH 8.5 in / 216 mm
  • HEIGHT 14 in / 356 mm
  • DEPTH 10 in / 254 mm
  • WEIGHT TBD

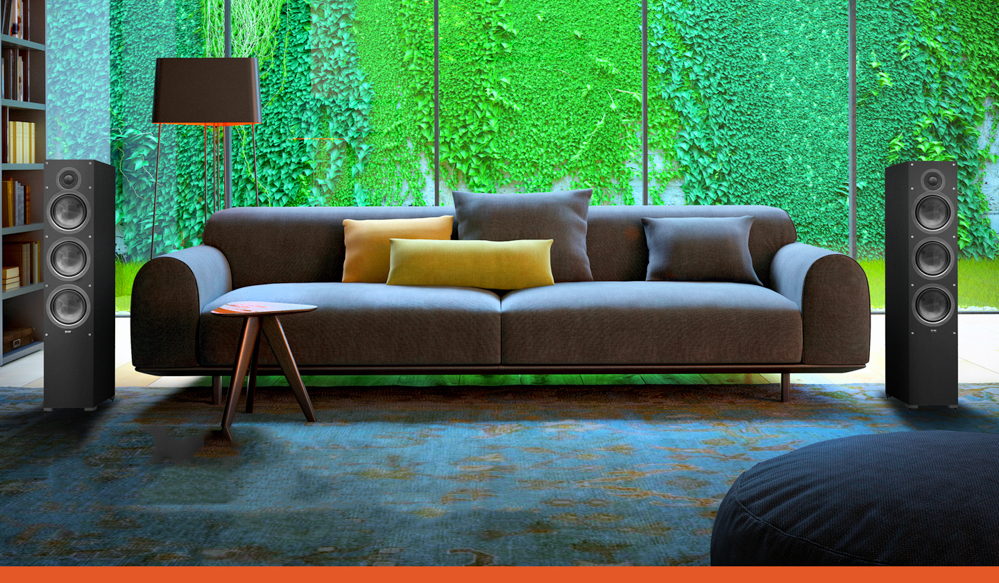

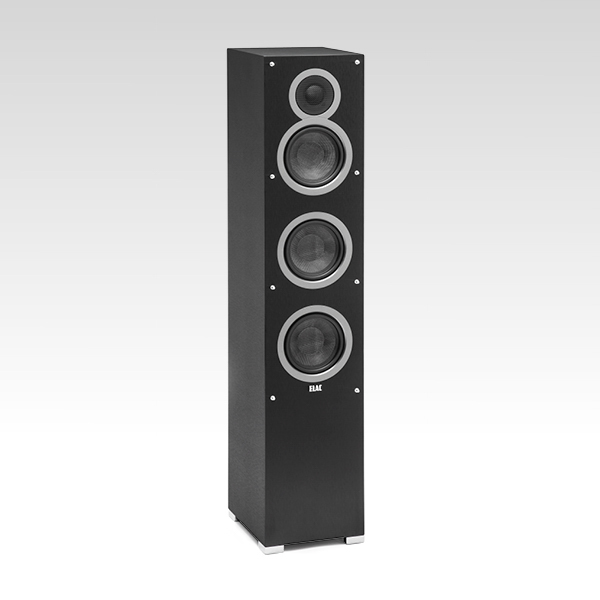

Elac DEBUT F5

  • SPEAKER TYPE 2-way, bass reflex
  • FREQUENCY RESPONSE 44 to 20,000 Hz
  • NOMINAL IMPEDANCE 6 Ω
  • SENSITIVITY 87 dB at 2.83 v/1m
  • CROSSOVER FREQUENCY 3,000 Hz
  • MAXIMUM POWER INPUT 120 Watts
  • TWEETER 1-inch cloth dome
  • WOOFER 6.5-inch woven aramid-fiber
  • cone with oversized magnet
  • and vented pole piece
  • CABINET CARB2 rated MDF
  • CABINET FINISH Black brushed vinyl
  • PORT Dual flared
  • BINDING POSTS 5-way metal
  • WIDTH 8.5 in / 216 mm
  • HEIGHT 14 in / 356 mm
  • DEPTH 10 in / 254 mm
  • WEIGHT TBD

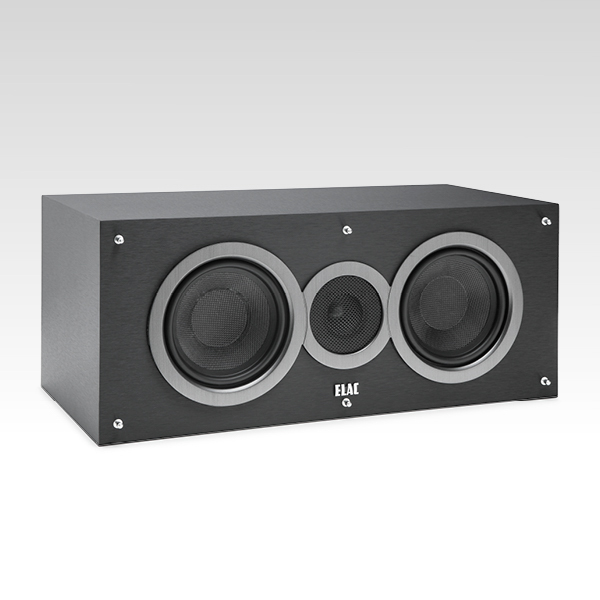

Elac DEBUT C5

  • SPEAKER TYPE 2-way, bass reflex
  • FREQUENCY RESPONSE 48 to 20,000 Hz
  • NOMINAL IMPEDANCE 6 Ω
  • SENSITIVITY 87 dB at 2.83 v/1m
  • CROSSOVER FREQUENCY 3,000 Hz
  • MAXIMUM POWER INPUT 120 Watts
  • TWEETER 1-inch cloth dome
  • WOOFERS 2 x 5.25-inch woven aramidfiber
  • cones with oversized
  • magnet and vented pole piece
  • CABINET CARB2 rated MDF
  • CABINET FINISH Black brushed vinyl
  • PORTS 2 x dual flared
  • BINDING POSTS 5-way metal
  • WIDTH 18.75 in / 476 mm
  • HEIGHT 7.87 in / 200 mm
  • DEPTH 8.75 in / 222 mm
  • WEIGHT TBD

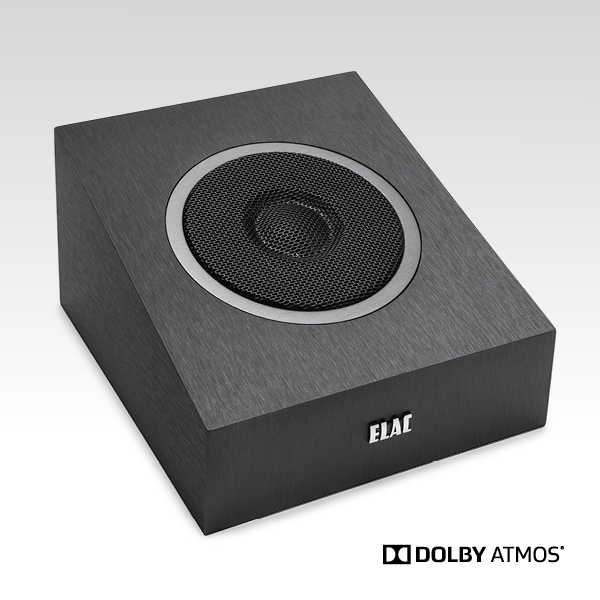

Elac DEBUT A4

  • SPEAKER TYPE Closed-box
  • FREQUENCY RESPONSE 180 to 20,000 Hz
  • NOMINAL IMPEDANCE 6 Ω
  • SENSITIVITY 85 dB at 2.83 v/1m
  • CROSSOVER FREQUENCY 5,000 Hz
  • MAXIMUM POWER INPUT 80 Watts
  • TWEETER .5-inch polymer dome
  • WOOFER 4-inch woven aramid-fiber
  • cone with oversized magnet
  • CABINET CARB2 rated MDF
  • CABINET FINISH Black brushed vinyl
  • BINDING POSTS 5-way metal
  • WIDTH 7.87 in / 200 mm
  • HEIGHT 4.83 in / 123 mm
  • DEPTH 8.75 in / 222 mm
  • WEIGHT TBD

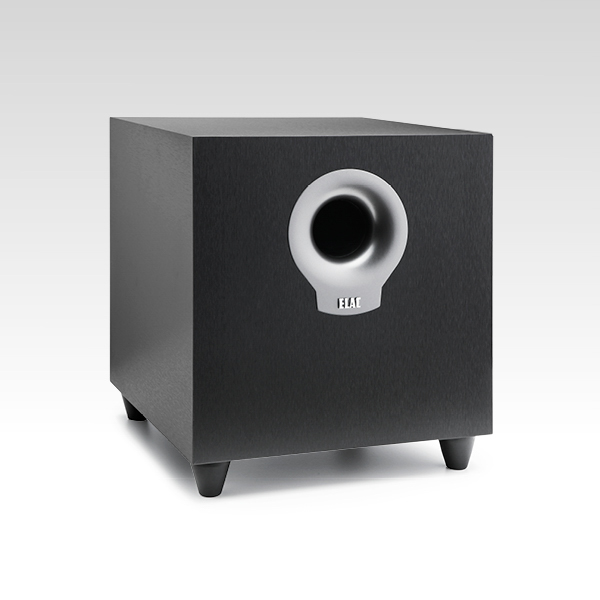

Elac DEBUT S10

  • ENCLOSURE TYPE Bass Reflex
  • AMPLIFIER TYPE BASH—Tracker
  • MAXIMUM AMPLIFIER POWER 200 Watts peak / 100 Watts RMS
  • FREQUENCY RESPONSE 35 to 150 Hz
  • CROSSOVER FREQUENCY 50 to 150 Hz
  • DRIVER 10-inch high-excursion
  • doped paper cone
  • STANDBY POWER CONSUMPTION .5 Watts
  • CABINET CARB2 rated MDF
  • CABINET FINISH Black brushed vinyl
  • PORT Dual flared
  • INPUTS LFE RCA
  • WIDTH 13.5 in / 343 mm
  • HEIGHT 13.5 in / 343 mm
  • DEPTH 13.5 in / 343 mm
  • WEIGHT 26.4 lb / 12 kg

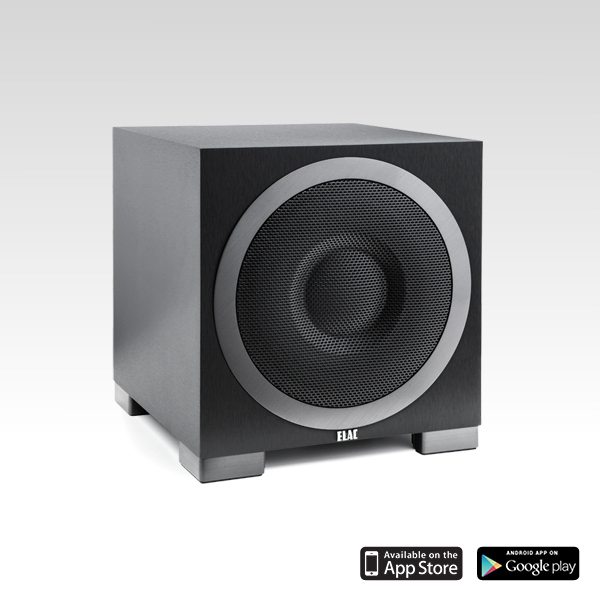

Elac DEBUT S10EQ

  • SPEAKER TYPE Powered bass-reflex subwoofer
  • AMPLIFIER TYPE BASH—Tracker
  • MAXIMUM AMPLIFIER POWER 400 Watts peak / 200 Watts RMS
  • FREQUENCY RESPONSE 28 to 150 Hz
  • CROSSOVER FREQUENCY 50 to 150 Hz,
  • continuously adjustable
  • DRIVER 10-inch high-excursion
  • doped paper cone
  • PASSIVE RADIATOR 10-inch high-excursion
  • doped paper cone
  • STANDBY POWER CONSUMPTION .5 Watts
  • CABINET CARB2 rated MDF
  • CABINET FINISH Black brushed vinyl
  • INPUTS LFE RCA
  • WIDTH 13.5 in / 343 mm
  • HEIGHT 13.5 in / 343 mm
  • DEPTH 13.5 in / 343 mm
  • WEIGHT 33.7 lb / 15.3 kg







Elac DEBUT S12EQ

  • SPEAKER TYPE Powered bass-reflex subwoofer
  • AMPLIFIER TYPE BASH—Tracker
  • MAXIMUM AMPLIFIER POWER 1,000 Watts peak / 500 Watts RMS
  • FREQUENCY RESPONSE 25 to 150 Hz
  • CROSSOVER FREQUENCY 50 to 150 Hz,
  • continuously adjustable
  • DRIVER 12-inch high-excursion
  • doped paper cone
  • PASSIVE RADIATOR 12-inch high-excursion
  • doped paper cone
  • STANDBY POWER CONSUMPTION .5 Watts
  • CABINET CARB2 rated MDF
  • CABINET FINISH Black brushed vinyl
  • INPUTS LFE RCA
  • WIDTH 17 in / 432 mm
  • HEIGHT 17 in / 432 mm
  • DEPTH 17 in / 432 mm
  • WEIGHT 49.1 lb / 22.3 kg






Norsk importør av Elac er dynaBel

Les mer om DEBUT-serien hos Elac
