Wednesday, 18 February 2015 22:12

EMC 1 MK III - a legend from Electrocompaniet in upgraded version.

Written by

Electrocompaniet launch their freshest bid within CD and SACD playback. It is in the form of an upgrade of the legend EMC 1-UP.



Electrocompaniet`s CD player EMC 1 has roots dating from 1998, and was at that time a highly prized CD player. Also when an upgraded version arrived - ECM 1-UP had upsampling.

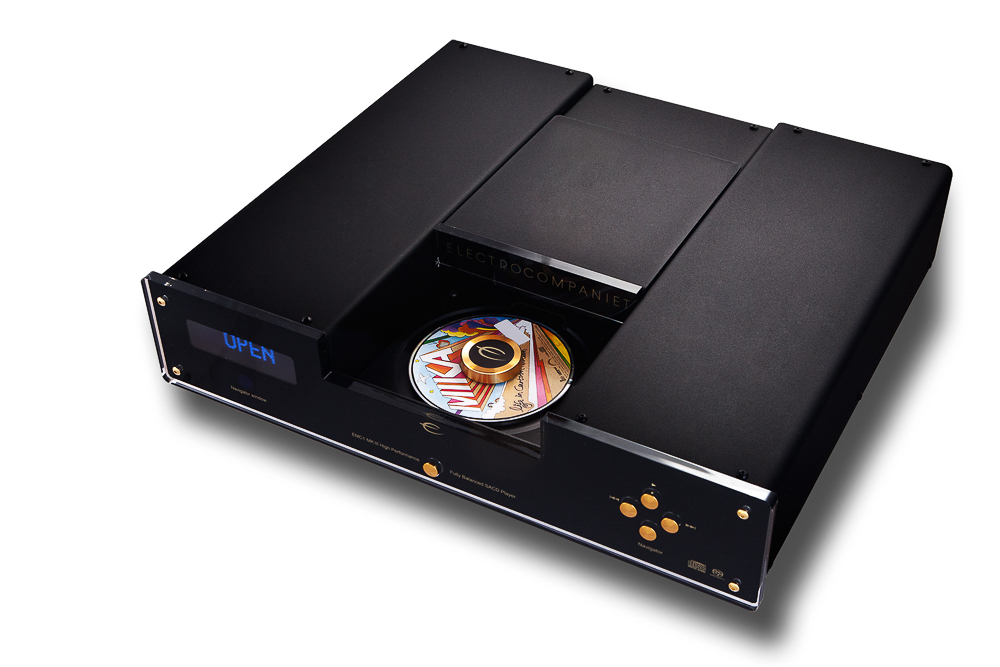

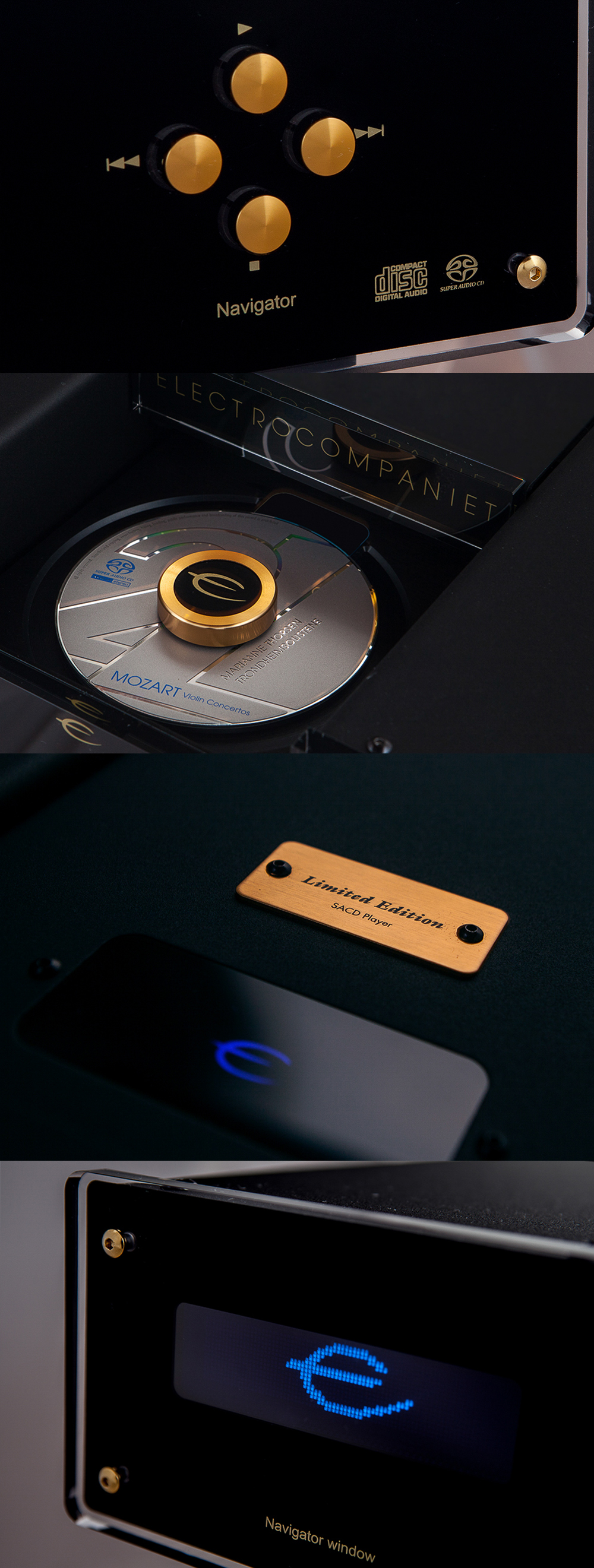

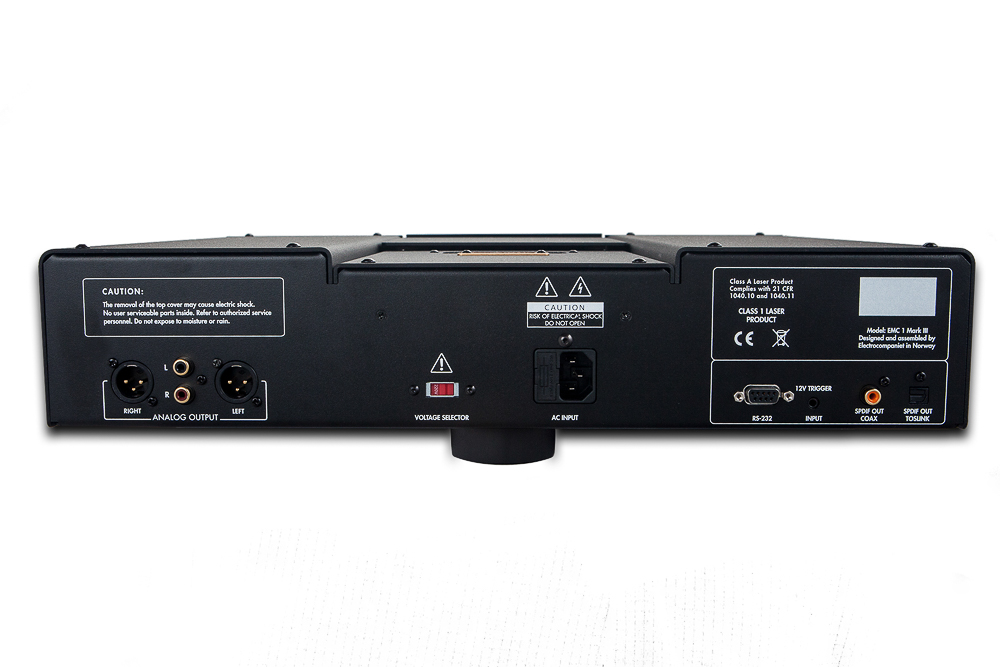

Now around 17 years after launch, an ultimate edition arrive. EMC 1 MK III can play both CD and SACD. Electrocompaniet still stick to a topploader mechanism with puck. The manufacturer offers both RCA and XLR outputs, and digital outputs in terms of both coax and optical. This is otherwise a pure CD / SACD player of the old school, where Electrocompaniet has not succumbed to the temptation to offer digital inputs.





Price in Norway is set to NOK 38 990, -.

Read more about EMC 1 MK III at Electrocompaniet .

Producers spesifications:


Product highlights:


   • No-compromise mechanical design with five different housings, which shield analogue, digital, transport, transformer   and controller circuitry.


    • Electromechanical cancellation system which cancels acoustic-mechanical vibrations, preventing the laster pickup from receiving mechanical distortions.
    • Separate transformers and power supplies for analogue and digital circuits.
    • Fully balanced D/A converter with discrete analog audio circuitry.
    • Digital outputs via S/PDIF and Toslink.
    •12V trigger input for remote power ON.
    • RS232 port for firmware upgrades and control through a wide range of home installation systems.
    • Soundcare superspikes for the best possible footing.





Technical specifications



Output level

(unbalanced) 2.3Vrms

(balanced) 4.6Vrms

Noise floor

< -130dB

Frequency deviation

(20-20kHz) 0.05dB

Channel separation

> 110 dB

THD+N

<0.003%

Dynamic range

120 dB





Compatible formats: CD, HDCD, SACD, MP3

Digital outputs: SPDIF COAX, SPDIF TOSLINK

Control inputs: RS232, 12V Trigger









Other



True balanced system



Mechanical filter which cancels acoustic/mechanical vibrations preventing the laser pick-up from receiving unwanted signals



FTT Power supply



Fully remote (no volume control)















Dimensions





Width

482 mm / 18.9 inches



Depth

422 mm / 16.6 inches



Height

120mm / 4.7 inches



Weight

18Kg / 39.6 lbs.
