TEAC's new pocket DAC havs the practical wings that protects the device`s extremeies during transport. Practical detail that when matched with a reader for microSD cards makes this DAC particularly attractive as an audiophile device for people on the go.
HA-P90SD handles PCM in 24bit /192kHz and DSD in 2.8 and 5.6MHz. This is provided by a Burr Brown PCM1795. Furthermore, we find Burr Brown OPA1602 Sound Plus OP-amps, and dual clocks for the multiple of 44.1kHz and 48kHz.

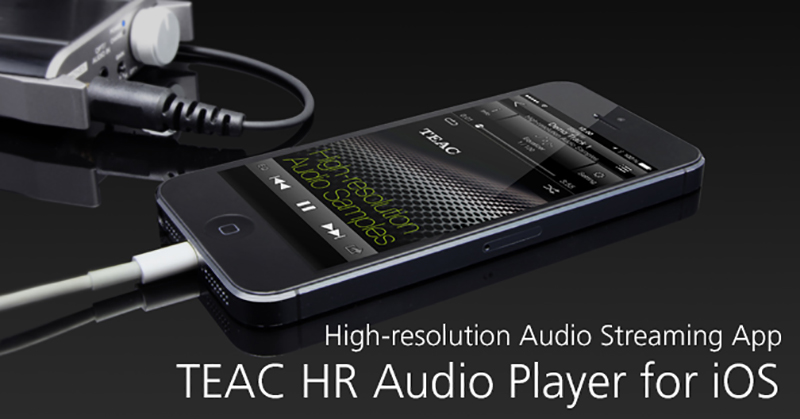

TEAC HA-P90SD supports file formats WAV, FLAC, MP3, AAC, DSF and DFF. It is available a free app for iOS and Android with the name TEAC HR Audio Player.
HA-P90SD SPECIFICATIONS
|
USB Audio section |
|
|
Connector |
USB A type, Micro USB B type |
|
Supported File Formats |
DSD, PCM |
|
DSD (DSF, DFF) |
2.8224MHz / 5.6448MHz (Native Playback) |
|
PCM |
44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz, 16/24-bit |
|
Audio Input section |
|
|
Optical Digital |
|
|
Connector |
1/8" (3.5mm) Optical Mini Jack (Common Coaxial Digital I/O and Analog Line Input) |
|
Supported File Format |
PCM |
|
PCM |
44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz, 16/24-bit |
|
Coaxial Digital |
|
|
Connector |
1/8" (3.5mm) Mini Jack (Common Optical Digital Input and Analog Line Input) |
|
Supported Format |
PCM |
|
PCM |
44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz, 16/24-bit |
|
Analog Line |
|
|
Connector |
1/8" (3.5mm) Stereo Mini Jack (Common Optical Digital Input and Coaxial Digital I/O) |
|
Built-in Player section |
|
|
Supported Media |
microSD Card (max. 2GB), microSDHC card (max. 32GB), microSDXC card (max. 128GB) |
|
Supported File Formats |
WAV, MP3, AAC, WMA, FLAC, DSF, DFF (DSDIFF) |
|
DSD (DSF, DFF) |
2.8224MHz / 5.6448MHz (Native Playback) |
|
WAV/FLAC |
44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz, 16/-24bit (FLAC: to 96kHz) |
|
AAC |
64k〜320kbps |
|
MP3 |
32k / 64k / 96k / 128k / 192k / 256k / 320kbps (VBR Supported) |
|
WMA |
48k〜384kbps (CBR/VBR Supported) |
|
Supported Tag Formats |
MP3 ID3v1/v2, AAC MP4, WMA Tag, FLAC Tag, DSDIFF EmChumk, DSF ID3v2.3 |
|
Database Administration |
Track Name, Album Name, Artist Name, Genre, Playlists, Favorites |
|
Repeat Play |
Single, Selected Range |
|
Shuffle Play |
Supported (On/Off) |
|
Play Modes |
Track Name, Album Name, Artist Name, Genre, Playlists, Favorites |
|
Gapless Playback |
Supported (On/Off) |
|
Audio Output |
|
|
Coaxial Digital |
|
|
Connector |
1/8" (3.5mm) Mini Jack (Common Coaxial Input, Optical Input and Analog Line Input) |
|
Output Formats |
PCM, DSD |
|
PCM |
44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz, 16/24-bit |
|
DSD |
DoP DSD 2.8224MHz (Future firmware version-up required.) |
|
DAC section |
|
|
D/A Converter |
BurrBrown PCM1795 |
|
Headphone Output |
|
|
Connector |
1/8" (3.5mm) Stereo Mini Jack (Unbalanced) |
|
Supported Impedance |
8 ohms to 600 ohms |
|
Headphone Output Level |
170mW + 170mW(32 ohms loaded, 1kHz, 10% THD, JEITA) |
|
Display section |
|
|
Type式 |
2.7" Monochrome OLED(Organic EL Display) |
|
Display Resolution |
128 x 64 pixels |
|
Brightness Control |
10 steps |
|
Dimmer Time |
30, 20, 10 seconds, Dimmer Disabled |
|
Display Off Time |
30, 20, 10 seconds, Display Off Disabled |
|
Menu Language |
English |
|
Tag Info Language |
English and Western European Languages, Japanese, Chinese (Traditional, Simplified) |
|
Power |
|
|
Type |
Built-in Li-ion Battery |
|
Capacity |
3460mAh |
|
Charging |
USB Charging (Using an included Micro USB B Cable), |
|
Battery Life |
Approx. 7 Hours (Digital Input, Continuous Playback) |
|
Dimensions |
2.7" x 0.8" x 4.8" |
|
Weight |
9.9 oz. / 280g |
|
Accessories |
USB A - Micro USB B Cable, USB A - DC Charging Cable, RCA Conversion Cable, Rubber Bands x2, Owner's Manual (including Warranty Card) |
|
Audio Performance |
|
|
Frequency Response |
10Hz to 80kHz(+/–3dB, Digital Connection, Built-in Player) |
|
Signal-to-Noise Ratio |
more than 105dB (max Input, Gain LOW, 100mW, 32 ohms loaded) |
|
Total Harmonic Distortions |
less than 0.004% (Max Input, Gain LOW, 100mW, 32 ohms loaded) |
Read more about HA-P90SD at TEAC.
