CP-1050 - Onkyo seeking back to ancient hunting grounds

Written by

Onkyo find back to old beats, and launch a turntable.  The name is Onkyo CP-1050.

Nowadays Onkyo is associated with  other things than vinyl. Maybe AV segment, but also quite largely two-channel HiFi in budget and midrange, with digital audio as first service. But make no mistake - Onkyo`s first product was a pickup, which was produced already in 1946. And in the 70s and 80s Onkyo had their series of turntables.



We do not know if it is this that is why the all-new turntable features a rather classic design, in contrast to prevailing flatbread constructions especially a few leading modern manufacturers. But it is not only designed where Onkyo CP-1050 stand out from the field in the vinyl market. Direct drive was perhaps more prevalent Latin a few decades back, but it clearly has its advantages.

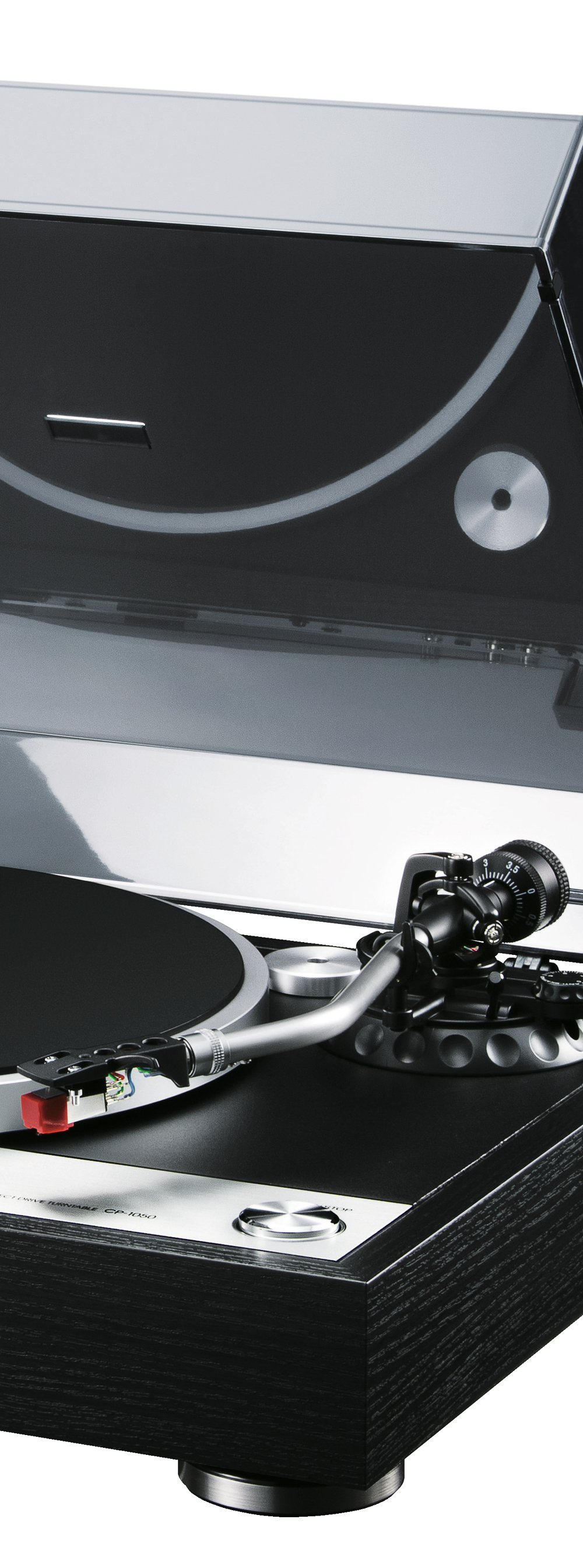

The chassis is built by thick, vibration damped MDF, and platter is made of aluminum. The S-shaped arm is equipped with detachable head shell. Engine allows for playback in both 33 and 45rpm, while height adjustable legs make it easy to level the player.

Onkyo CP-1050 is supplied Plug & Play with an MM pickup. Price in Norway is currently unknown to us.

Read more about CP-1050 by Onkyo.

Importer in Norway is Mono AS.


Produsentens spesifikasjoner.



SPECIFICATIONS

Turntable Section
Drive Method Direct-Drive
Turntable Type 305 mm Die-cast Aluminum
Turning Speed 33 1/3 / 45 rpm
Motor Type Brushless DC
Starting Torque >1.0 kgf-cm
Brake Electronic Brake
Wow and Flutter 0.15% or Less at 33 1/3 rpm
Signal-to-Noise Ratio >60 dB

Tonearm Section
Type Static-balanced, S-shaped
Headshell Detachable
Headshell Weight 10 g
Effective Arm Length 230 mm
Overhang 15 mm
Applicable Cartridge Weight Range (Including Headshell) 15–20 g
Tracking Error Angle Within 3º
Anti-Skating Range 0–3 g
Stylus Pressure Adjustment Range 0–4 g

Cartridge Section
Cartridge Type Moving-Magnet (MM)
Output Voltage 2.5 mV/±3 dB (1 kHz at 3.54 cm/Sec.)
Channel Balance <2.5 dB
Load Resistance 47 kÙ
Cartridge Weight 5 g
Replacement Stylus DN-105ST
Frequency Response 0±3 dB
(10 kHz, Based on Value at 1 kHz)
Channel Separation >18 dB (at 1 kHz)

General
Power Supply AC 220–240 V~, 50/60 Hz
Power Consumption 6 W
Standby Power Consumption
0.4 W
Dimensions (W x H x D) 450 x 158 x 367.5 mm
Weight 8.6 kg

CARTON
Dimensions (W x H x D) 542 x 243 x 465 mm
Weight 11.2 kg

Supplied Accessories
• Instruction manual • RCA audio cable • Dust cover
• Adapter for 17 cm 45 rpm records • AC cord
