Wednesday, 20 May 2015 13:06

A-S1100 - New integrated amplifier with retro design from Yamaha

Written by

Yamaha launches the amplifier A-S1100. It replaces the predecessor A-S1000, although it resembles much more on a big brother.








Yamaha have had very good response to his new series of stereo products that were launched a few years ago. Great design in a retro inspired cabinet has been the trademark, in great contrast to the 80/90-ootdated look that characterized the previous models.

The integrated amplifier A-S1100 replaces A-S1000, and based on the specifications the difference is not very large. However, the appearance is, which seems to be more or less identical to big brother A-S2100. This means a couple of VU-meters that adorn the front and consolidates the retro-inspiration even more.

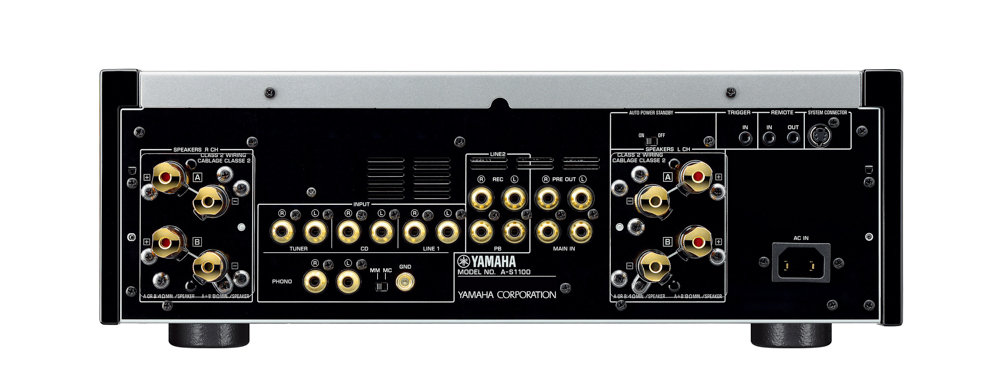

A-S1100 is still a pure stereo amplifier, without digital trends as we find in more amplifiers from other manufacturers. Three sets of ordinary RCA inputs as well as a tape in- and output. In addition, we find the input for both MM and MC. There is both a set of pre-out, and a direct entrance to the power amplifier.





Specifications from Yamaha:






Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)

160 W + 160 W

High Dynamic Power/Channel (8/6/4/2 ohms)

105/135/190/220 W

Damping Factor

250

Frequency Response

5 Hz-100 kHz (+0 dB/-3 dB)

RIAA Equalization Deviation

20 Hz-20 kHz +/-0.5 dB

Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)

0.025%

Signal-to-Noise Ratio (CD)

100 dB (S: 200 mV)

Input Sensitivity (CD)

200mV/47k ohms

Dimensions (W x H x D)

435 x 157 x 463 mm

Weight

23.3 kg







Read more about A-S1100 by Yamaha .
